GOM Mix ProUser Guide
Adding Video Filter
1) Adding Color or Texture Filter
You can apply a color or texture filter to change the color or texture of the video images.
- A color filter cannot be used with a color conversion filter, and a texture filter cannot be used with a texture conversion filter.

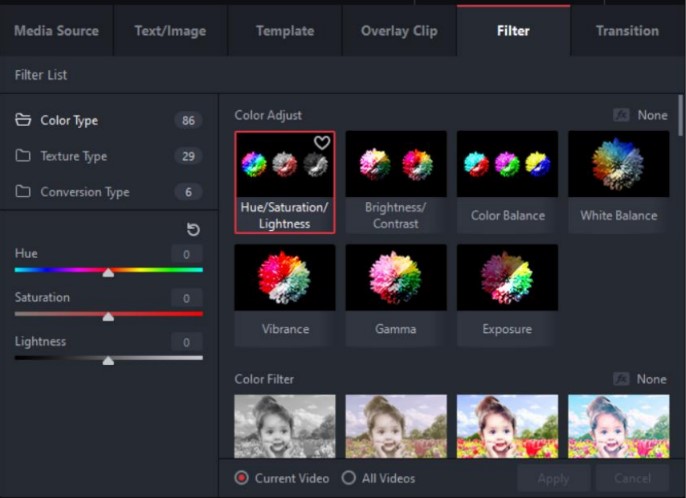

Color Filter List

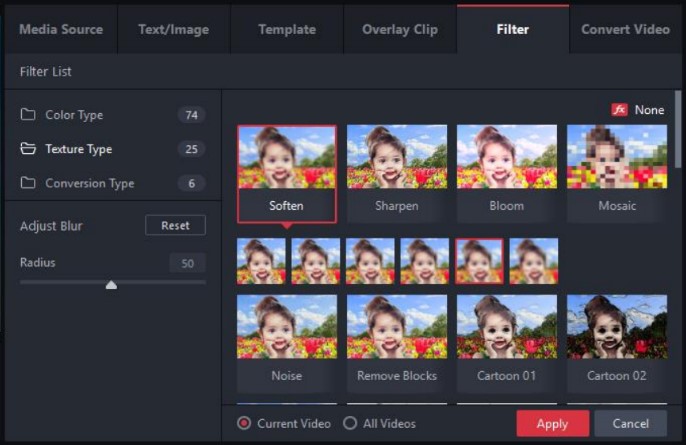

Texture Filter List
The steps to add a color or texture filter are as follows:
-
1.

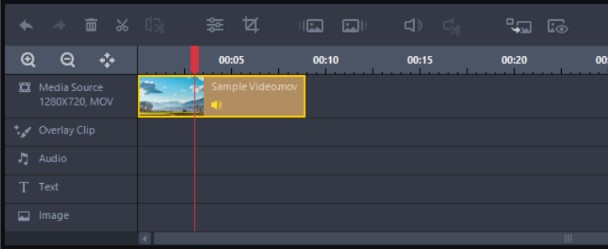

Select a media source from the timeline you want to add a color or texture filter to.
- 2. Click the Filter tab in the sources & effects panel.
- 3. Click the filter folder in the list you want to use.
- 4. Choose the filter to add.
- 5. In the detailed adjustments panel, change the filter attributes.
-
6.
Specify the area of the video the filter will be applied to.
- Current Video: Applies the filter to the current video only.
- All Videos: Applies the filter to all videos.
-
7.
Click Apply.
- When a video filter is applied, the (
) icon becomes active on the upper right corner of the filter list panel. Click this icon to delete the filter.
- When a video filter is applied, the (
2) Adding Conversion Filter
You can add a color or texture transition effect in between two video clips.
- A conversion filter requires two or more media sources.

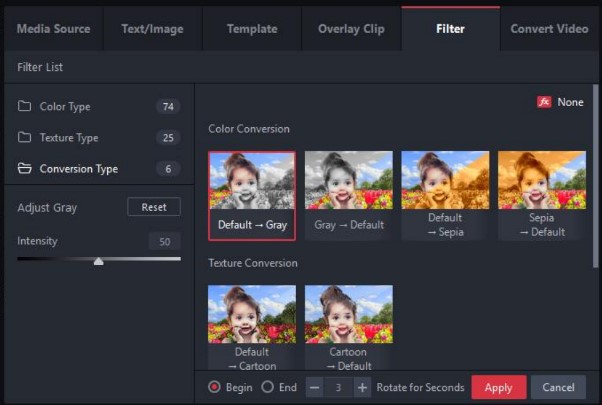

Conversion Filter List
-
1.

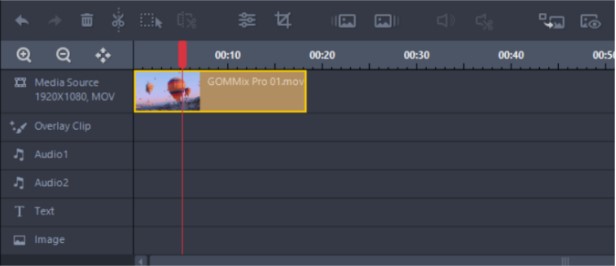

Choose a media source from the timeline you want to apply a conversion filter to.
- 2. Click the Filter tab in the sources & effects panel.
- 3. Click Conversion Type from the list of folders.
- 4. Choose the filter to apply to the media source.
- 5. In the detailed adjustments panel, change the filter attributes.
-
6.
Set a section and transition time where the filter will be applied to.
- Begin: Apply the conversion filter at the start of the video.
- End: Apply the conversion filter at the end of the video.
-
7.
Click Apply.
- When a video filter is applied, the (
) icon becomes active on the upper right corner of the filter list panel. Click this icon to delete the filter.
- When a video filter is applied, the (
